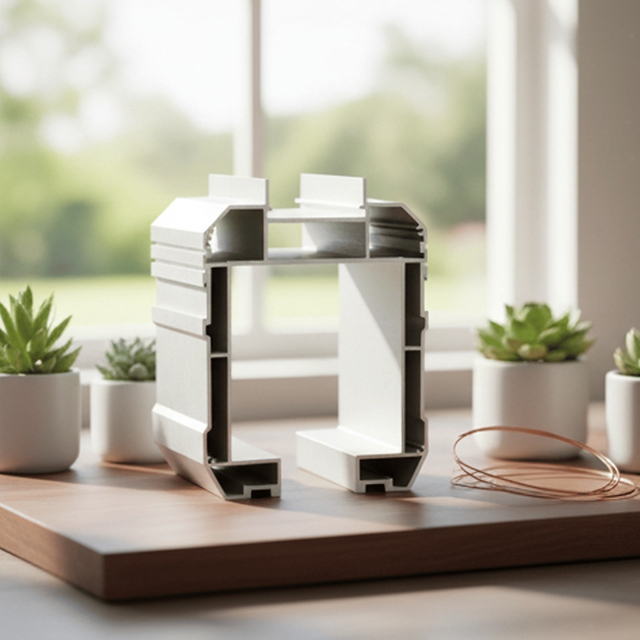

Autovehicle/motor aluminum guide track profiles are precision-engineered extruded aluminum components designed specifically for vehicle guidance and transmission systems. Manufactured from high-strength, wear-resistant aluminum alloys, they feature excellent load-bearing capacity, fatigue resistance, and corrosion protection to endure the rigorous operating conditions of automotive and motorized equipment. The complex, multi-cavity cross-section ensures precise alignment, smooth sliding, and reliable positioning of moving parts, supporting stable operation of vehicle doors, windows, sliding mechanisms, and powertrain systems. With advantages of lightweight design, long service life, and customizable dimensions, these profiles enhance vehicle performance, safety, and operational efficiency, making them ideal for passenger cars, commercial vehicles, and industrial motorized equipment.
Premium Aluminum Guide Track delivers precise, low-friction motion for automation, CNC equipment, robotics, conveyors, and architectural systems. As a global industrial aluminum manufacturer and solution partner, we provide custom extrusions, precision CNC machining, and coordinated surface finishing from design to assembly. Our team optimizes cross-sections for stiffness-to-weight, controls straightness, and machines critical interfaces to meet your tolerances.
We produce V-slot and T-slot rails for modular builds, dovetail or rectangular tracks for high precision, and sliding or pulley profiles for doors and conveyors. Common alloys: 6063-T5/T6 for surface quality and 6061-T6 or 6082-T6 for higher strength and rigidity.
| Profile Type | Primary Use | Typical Alloy |
|---|---|---|
| V-slot / T-slot | Modular automation and adjustable guides | 6063-T5/T6 |
| Dovetail / Rectangular | High precision and rigidity | 6061-T6 / 6082-T6 |
| Sliding / Pulley | Doors, partitions, conveyors | 6063-T5/T6 |
| Heavy-duty | Industrial machinery and high loads | 6061-T6 / 6082-T6 |
Ideal for frames, fixtures, and quick reconfiguration. Specify slot size, hole patterns, and datum faces to speed assembly and alignment.
Reinforced geometries and thicker walls support shock, abrasion, and continuous duty. Precision machining maintains linearity over long lengths.
Anodizing and hard anodizing improve wear resistance and stability on rolling surfaces. Powder coating adds durable color and corrosion protection for architectural or outdoor use. Low-friction and sealing options help reduce noise and maintenance in dusty or humid environments.
Aluminum Pully Track Profiles Used across industrial automation, CNC and robotics, conveyors, sliding doors and partitions, medical devices, and heavy equipment. Compatible with V-wheels, linear bearings, sliders, pulleys, and carriage systems, including cleanroom and outdoor configurations.
Define load, speed, and allowable deflection; choose the bearing interface; and match finish to the environment and maintenance plan.
| Factor | Define | Typical Choice |
|---|---|---|
| Load & deflection | Section stiffness and wall thickness | 6061/6082 for higher loads |
| Precision & interface | Straightness, flatness, datum faces | Dovetail/rectangular with CNC finish |
| Environment | Wear, corrosion, cleanliness | Hard anodize or powder coat |
We support complex cross-sections, tight tolerances, and assembly-ready rails with 5-axis CNC, drilling, and end-feature machining. Quality systems align with international standards (e.g., ISO 9001; sector frameworks where applicable). Typical delivery is 15–20 workdays, MOQ 8–10 tons, free new-die samples for approval, and flexible T/T or L/C terms. Protective packaging preserves straightness and finish.
Send drawings/CAD, alloy/temper, finish, lengths, tolerances, quantities, and application notes. Our manufacturer engineering team will review for DFM and provide cost-down suggestions to accelerate your launch.
