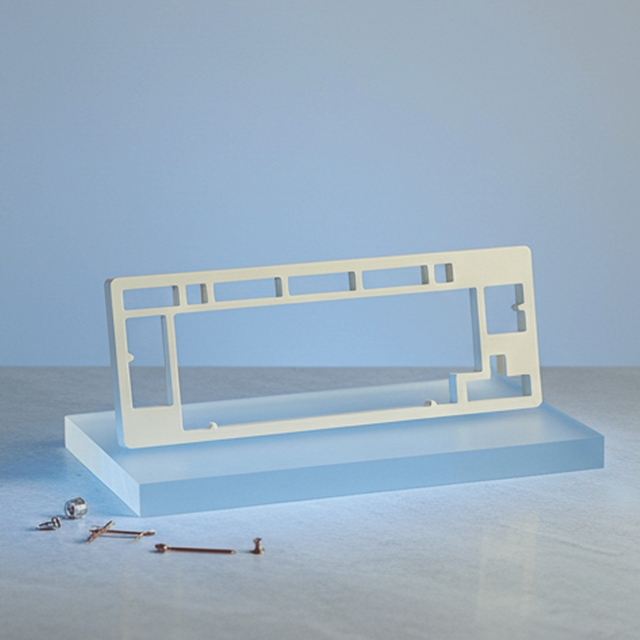

Industrial Aluminum keyboard frames profiles are precision-machined extruded aluminum components designed specifically for mechanical and custom keyboards. Crafted from high-grade aluminum alloys, they offer exceptional rigidity, anti-deformation performance, and a premium metallic texture, effectively enhancing the keyboard’s structural stability and typing feel. The precisely cut hollow and slot structures provide precise positioning for keycaps, switches, and internal circuit boards, while enabling efficient heat dissipation and weight reduction. With customizable surface treatments (such as anodizing, sandblasting, and brushing), these profiles deliver both aesthetic appeal and durability, making them the ideal choice for high-end, custom, and mechanical keyboard builds.
Aluminum Keyboard Frames Profiles are precision extrusions for high‑performance mechanical keyboards. As an end‑to‑end manufacturer, we handle design, extrusion, CNC machining, finishing, and assembly. Compared with plastic cases, aluminum offers tighter tolerances, higher rigidity, refined acoustics, and premium finishes. We customize layouts, mounting styles, branding, and RGB channels while focusing on cost and efficiency from design to mass production.
Use 6063‑T5/T6 for superior surface quality and consistent anodizing. Choose 6061‑T6 when higher structural strength is required, especially on larger layouts. Profiles can be engineered for bezels, integrated top cases, or low‑profile frames with optimized wall thickness.
Typical machining tolerances are ±0.05–0.20 mm, with flatness and parallelism controlled for uniform plate and PCB alignment. We integrate threaded features (M2/M3), optional helicoils, and precise USB‑C or daughterboard cutouts. Products can align with customer‑specified standards such as ASTM, DIN, IEC, and RoHS.
Our 5‑axis CNC capability delivers deep pockets, smooth radii, fine chamfers, and clean deburring. Process engineering and DFM maintain repeatability, acoustics, and fit across production runs. Uniform edge quality prepares parts for anodizing or powder coating while minimizing tool marks.
Anodized finishes include matte, satin, and glossy, typically 8–25 μm thick. Pre‑finish textures—sandblasting, bead blasting, and brushing—create consistent grain before coloring. Powder coating enables distinctive colors and added protection, with electrophoresis available per project. Depending on process and color, corrosion performance up to 720 hours salt spray is achievable.
We produce frame‑only bezels, integrated top cases, low‑profile frames, and split or ergonomic variants. Integration features include RGB light channels, diffusion pockets, weight cavities, and badge recesses.
| Mounting Style | Feel & Acoustics | Notes |
|---|---|---|
| Gasket mount | Soft, isolated, controlled resonance | Requires precise ledge heights and uniform compression |
| Top mount | Crisp, stable, balanced sound | 6061‑T6 stiffness favored for larger layouts |
| Tray mount | Direct, firm | Cost‑effective with simple assembly |
Define layout and mounting to match the desired feel and sound. Select alloy and temper based on finish expectations and stiffness. Specify critical tolerances for plate and PCB fit, connector alignment, and flatness. Choose finish and branding methods, then prototype to validate acoustics and assembly before locking specifications for mass production.
Our full‑process capability—extrusion, 5‑axis machining, milling, turning, anodizing, and coating—supports faster time‑to‑market and consistent quality. We operate 14 extrusion lines and in‑house finishing. ISO 9001 practices guide our quality system, and products can be built to customer‑specified standards. Typical lead time is 15–20 working days after approval. For extrusion programs, MOQ is usually 8–10 tons. We provide free new‑die samples, protective packaging, and T/T or L/C terms.
Share your RFQ with layout, mounting style, tolerances, finish, color, quantity, and schedule. As an industrial aluminum manufacturer and supplier, we deliver custom Aluminum Keyboard Frames Profiles that align with your brand’s sound and feel. Contact us for DFM support, samples, and a tailored proposal.
