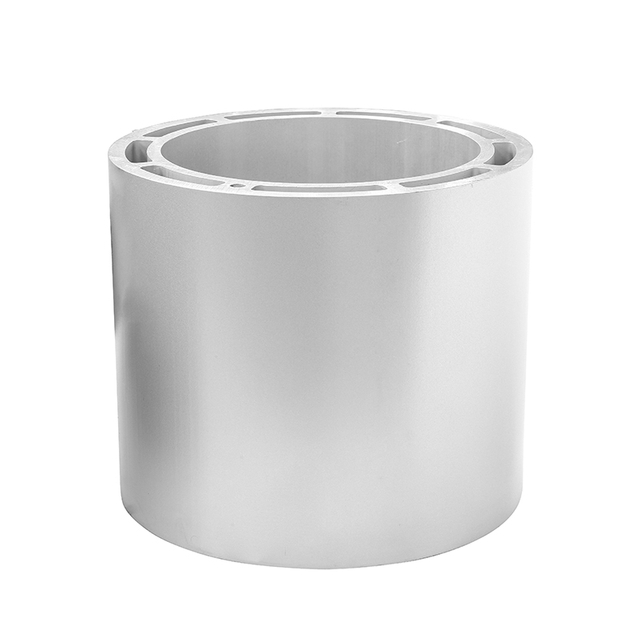

Heavy-Duty Aluminum motor shell/housing profiles are specialized extruded aluminum components engineered for electric motor enclosures. Manufactured from high-strength, thermally conductive aluminum alloys, they deliver exceptional heat dissipation performance, structural rigidity, and corrosion resistance to protect internal motor components from harsh operating environments. The precision-machined slot and mounting structures ensure secure assembly and efficient heat transfer, effectively regulating motor temperature and extending service life. With advantages of lightweight design, customizable dimensions, and surface treatments (such as painting and anodizing), these profiles enhance motor efficiency and reliability, making them ideal for industrial motors, electric vehicle motors, and precision servo motors.
Aluminum Motor Shell Profiles are extruded cylindrical and finned housings engineered to protect and cool electric motors. They deliver lightweight strength, efficient heat dissipation, dimensional stability, and reliable corrosion resistance for demanding duty cycles.
HOMI supports DFM and die design for complex cross-sections and special alloys (6063‑T5 standard; 6061/6005/6082 optional). Controlled extrusion, aging, and straightening stabilize geometry before CNC machining. We produce bearing seats, threads, keyways, and sealing grooves with tight control of concentricity, roundness, runout, and straightness. Finishes include anodizing, powder coating, and sandblasting, with salt spray performance tested up to 720 hours when specified. Assembly-ready delivery is available with end caps, seals, and fasteners. Inspection and documentation are provided, with typical lead times of 15–20 workdays and free new‑die samples before mass production.
Air‑cooled shells use integrated fins to increase surface area and guide airflow for stable thermal performance. Liquid‑cooled housings incorporate internal channels and sealed interfaces to remove heat quickly in high power‑density designs.
We balance fin height, pitch, and wall thickness to meet thermal targets while controlling weight and noise. Anodizing or powder coating suits outdoor and industrial environments.
Internal channels, O‑ring grooves, and flat datum faces support leak‑tight assembly and precise alignment. Material and finish choices are guided by coolant and environment.
Define requirements early to speed sourcing and control cost.
| Selection Factor | Why It Matters | Typical Guidance |
|---|---|---|
| Frame size & length | Sets baseline geometry and allowances | Confirm stator OD/ID, clearances, and length tolerance |
| Cooling method | Drives thermal capacity and noise | Choose fins for airflow or channels for liquid cooling |
| Geometric tolerances | Impacts efficiency and bearing life | Specify concentricity, roundness, runout, straightness |
| Surface finishing | Durability and appearance | Anodizing or powder coating; corrosion targets as needed |
| Volume & supply | Influences tooling and schedule | Discuss MOQ ~8–10 tons and 15–20 workday lead time |
Solutions fit servo and robotics drives, HVAC compressors, pumps and fans, transportation auxiliaries, and medical or high‑end equipment. We align geometry, finish, and documentation to application needs and are familiar with automotive program expectations.
HOMI is an OEM/ODM manufacturer of Aluminum Motor Shell Profiles and finished motor housings. Send drawings, alloy, cooling type, tolerance targets, and finish specs. Typical terms: lead time 15–20 workdays, MOQ about 8–10 tons, free new‑die samples, and payment via T/T or L/C. Contact us to schedule a DFM review, accelerate launch, and reduce total cost while enhancing performance.
