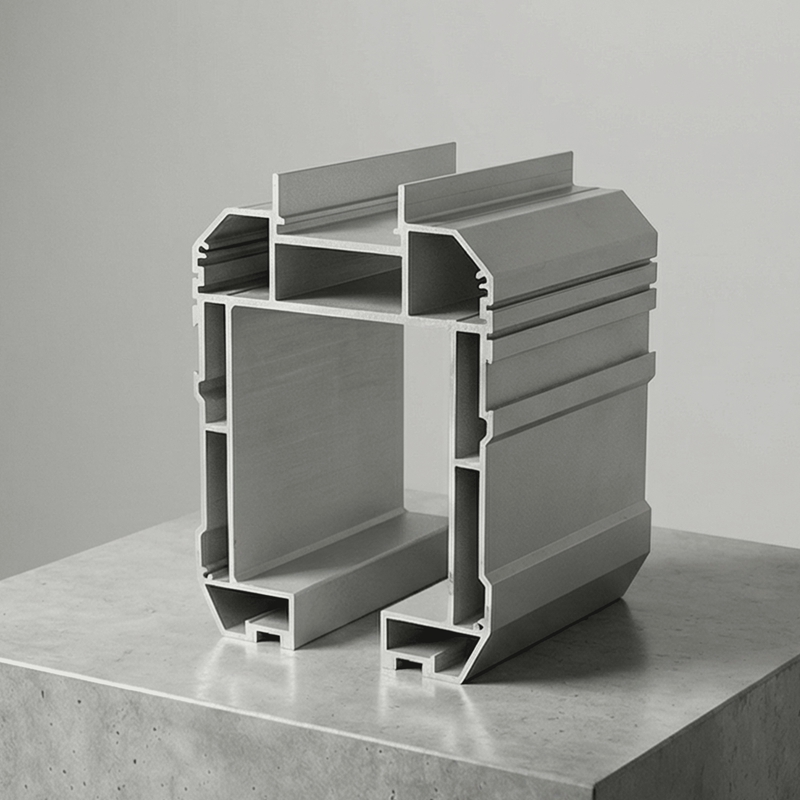

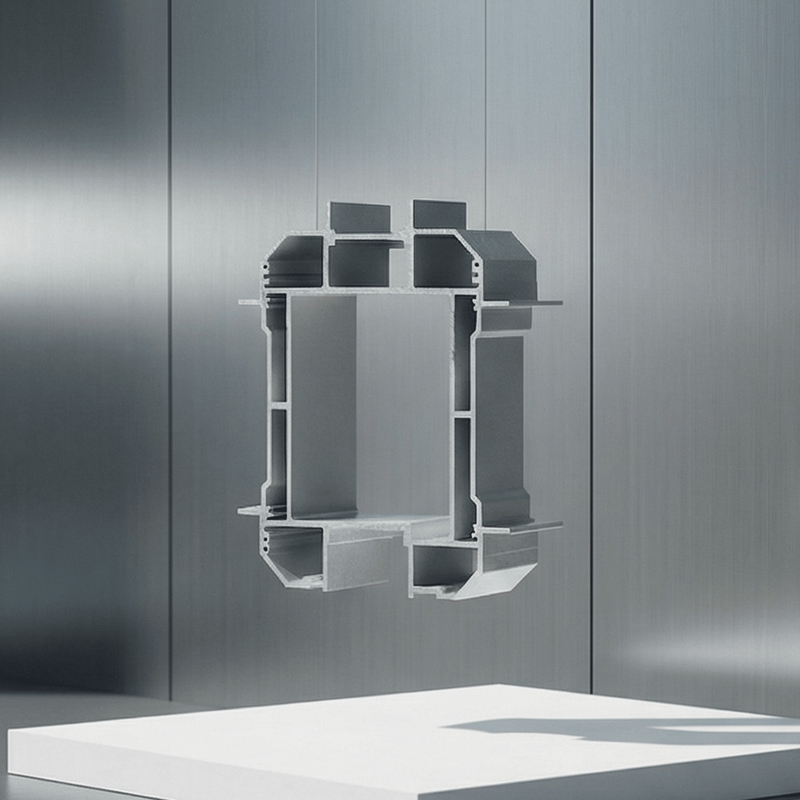

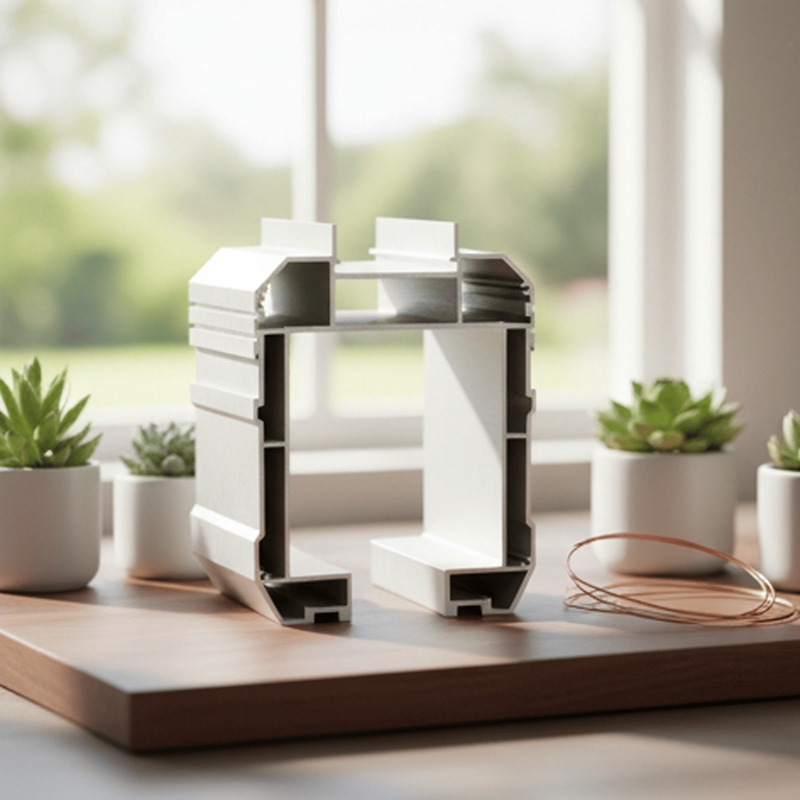

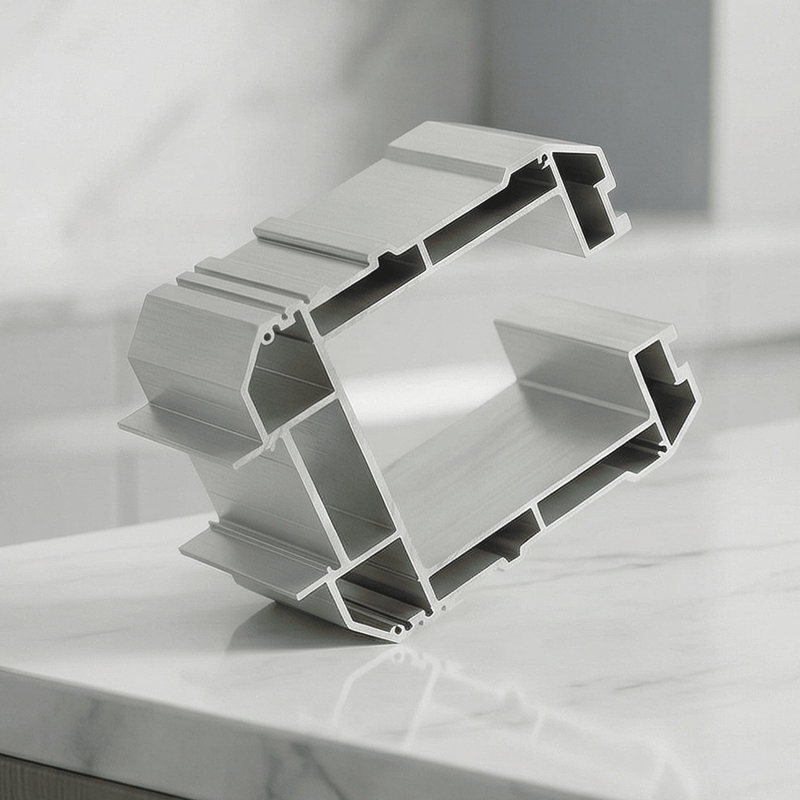

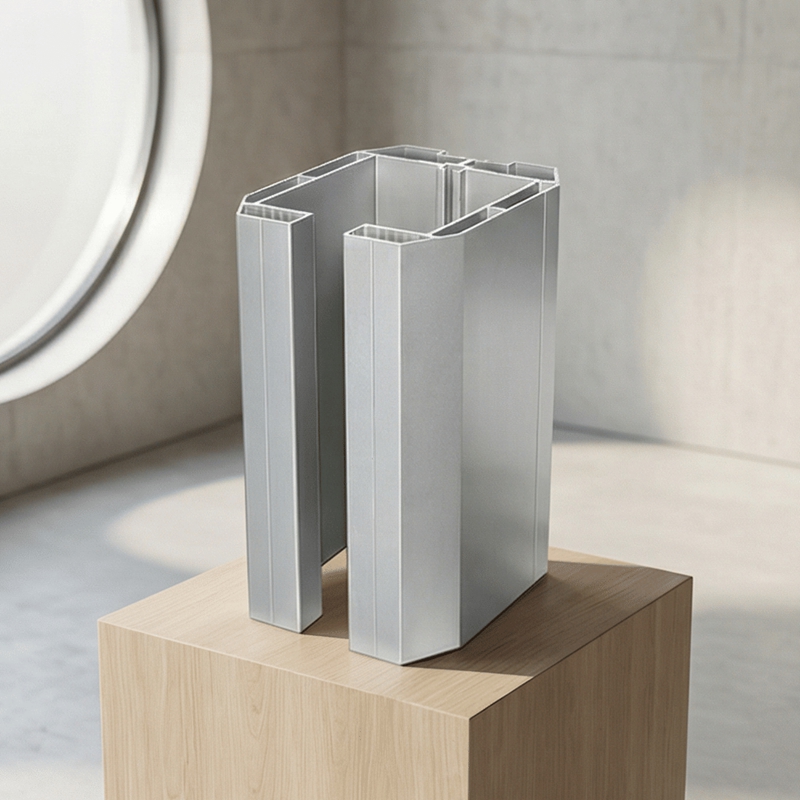

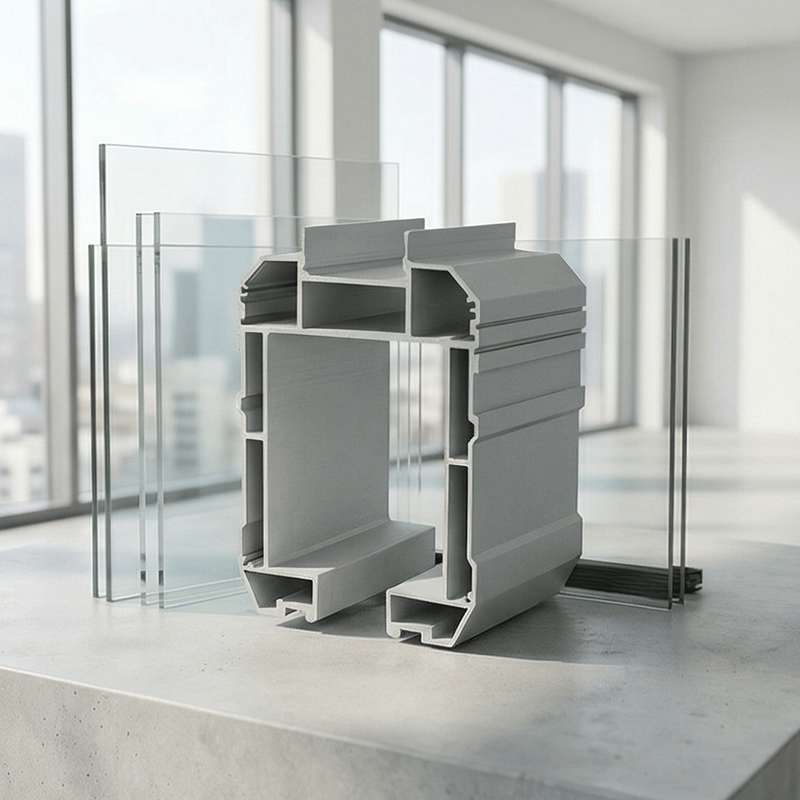

Product Advantage
Reliable Load-Bearing & Corrosion Resistance: The 5052-H32 aluminum alloy’s excellent mechanical properties (modulus of elasticity 69GPa) and track structure optimization (sidewall thickness: 2.5-4mm) enable the track to bear static loads up to 1000N and dynamic loads up to 600N—suitable for conveying small automotive parts (e.g., door handles) or electronic components (e.g., 30kg display screens). The 18-22μm anodized surface (surface hardness ≥280HV) and alloy’s inherent corrosion resistance ensure the track can be used in humid workshops (e.g., kitchen appliance production) without rusting.
Lightweight & Cost-Effective: With a density of 2.7g/cm³, the track is 65% lighter than steel tracks and 25% cheaper than 6061-T6 aluminum tracks. For a 3m-long assembly line segment, this reduces track weight by 28kg and lowers procurement costs by 15-20%—ideal for small and medium-sized manufacturing enterprises.
Precision Guidance & Quiet Operation: CNC drilling ensures track groove tolerance of ±0.04mm and flatness of ≤0.07mm/m, matching common industrial pulleys to minimize vibration and sliding noise (≤42dB at 1m). This meets basic industrial noise standards and creates a comfortable working environment for operators.
Easy Processing & Customization: The 5052-H32 alloy’s good formability allows for flexible customization of track cross-sections (e.g., L-type for edge conveying) and lengths. The extrusion process enables mass production (output up to 500m/h), reducing lead time for custom orders by 30% compared to complex alloy tracks.
Simple Installation & Maintenance: Pre-drilled mounting holes (M5-M8 threads, spacing 80-120mm) and lightweight design allow two workers to complete installation of a 10m track in 2 hours—saving labor costs. The smooth anodized surface is easy to clean, requiring only monthly wiping to remove dust, reducing maintenance workload.
Technical Parameters
Parameter | Specification | Unit | Test Standard |
Material | 5052-H32 Aluminum Alloy | - | ASTM B221 |
Cross-Section Type | U-type, L-type, Double-Track (Customizable) | - | Customer Requirement |
Length (Customizable) | 800 - 4000 | mm | GB/T 6892 |
Track Groove Width | 10 - 25 | mm | DIN 24553 |
Track Groove Depth | 8 - 18 | mm | DIN 24553 |
Track Thickness (Sidewall) | 2.5 - 4 | mm | GB/T 6892 |
Surface Treatment | Anodizing (18-22μm) | - | ASTM B928 |
Surface Hardness | ≥280 | HV | ASTM E384 |
Tensile Strength | ≥230 | MPa | ASTM B557 |
Yield Strength | ≥190 | MPa | ASTM B557 |
Static Load Capacity | ≤1000 | N | DIN 24553 |
Dynamic Load Capacity | ≤600 | N | DIN 24553 |
Sliding Resistance | ≤7 | N | Internal Test |
Operating Noise | ≤42 | dB (at 1m) | ISO 3746 |
Corrosion Resistance | ≥1200 | Hours (Salt Spray Test) | ASTM B117 |
Compatible Pulley Diameter | 12 - 28 | mm | Industry Standard |
Max Conveyor Speed | ≤1.2 | m/s | Internal Test |
Operating Temperature Range | -30 ~ 110 | ℃ | GB/T 3194 |
Product Uses
1. Automotive Small-Part Assembly Lines: U-type aluminum pulley tracks convey small automotive parts (e.g., screws, sensors) along semi-automated assembly lines. The medium load capacity (600N dynamic) meets conveying needs, and the low cost helps control production costs for small automotive component manufacturers.
2. Consumer Electronic Assembly Lines: L-type aluminum tracks are used in mobile phone and tablet assembly workshops to convey circuit boards and casings. The corrosion-resistant surface adapts to air-conditioned workshop environments, and the quiet operation (≤42dB) improves the working experience of assembly workers.
3. Small Appliance Production Lines: Double-track aluminum tracks guide the movement of small appliance parts (e.g., electric kettle heating elements). The simple installation design allows quick line reconstruction (e.g., adjusting track layout in 1 day) to adapt to product model changes.
4. Workshop Material Handling: Lightweight U-type tracks transport toolboxes and small part bins between workshop workstations. The easy maintenance feature reduces daily management workload, suitable for small workshops with limited maintenance resources.
Product Operate Guide
1. Pre-Installation Preparation: Confirm the track’s specifications match the conveying requirements. Clean the track and mounting surface with a dry cloth to remove dust—ensuring smooth installation.
2. Installation Steps: Fix the track to the workstation frame using M5-M8 bolts (torque 10-15N·m, spacing 80-120mm). Use a level ruler to calibrate track straightness (tolerance ≤0.07mm/m). Splice short track segments with aluminum connectors and tighten with screws.
3. Post-Installation Check: Test pulley movement to ensure no jamming. Run the conveyor with a 1× rated load for 1 hour to confirm stability. Measure operating noise to ensure it meets ≤42dB.
4. Maintenance Tips: Wipe the track surface monthly with a damp cloth to remove dust. Lubricate the groove with general industrial grease every 300 working hours. Inspect the anodized surface quarterly—touch up scratches with anti-rust paint if needed.
FAQ
1. Q: Can the track be customized for curved assembly lines (e.g., 1m radius)?
A: Yes. We offer curved tracks with custom radii (≥0.8m) for circular assembly lines. The lead time for curved tracks is 7-10 working days, with MOQ 200 pieces.
2. Q: What is the price difference between 5052-H32 and 6061-T6 tracks?
A: 5052-H32 tracks are 15-20% cheaper, suitable for medium-load scenarios. 6061-T6 tracks cost more but offer higher strength for heavy loads.
3. Q: How to replace a damaged track segment?
A: Loosen the connectors and bolts of the damaged segment, remove it, and install a new segment. Re-calibrate straightness after replacement—no need to disassemble the entire line.
