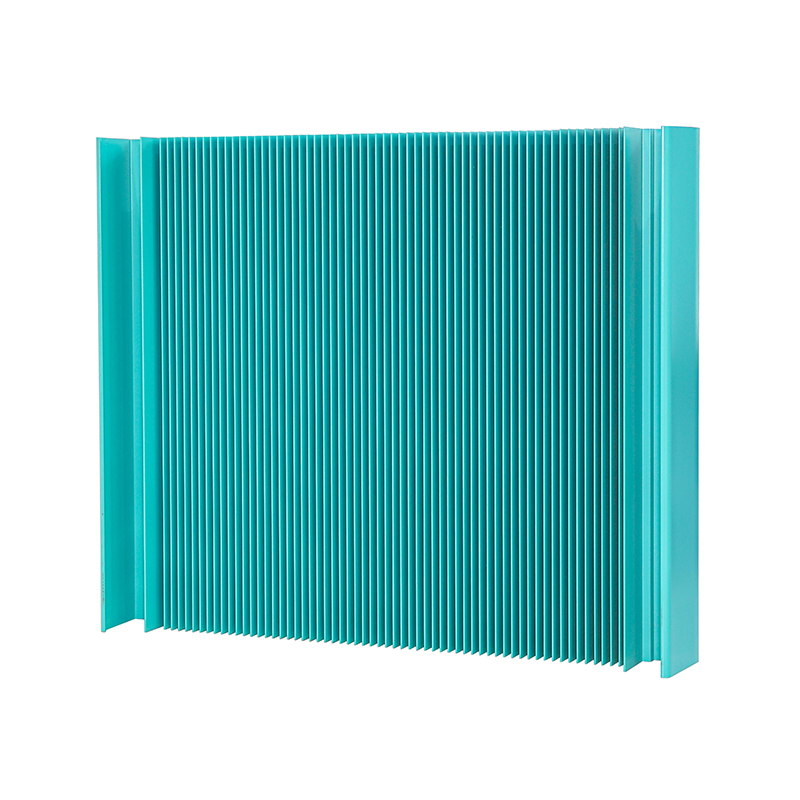

Engineers face complex thermal management challenges daily. Specifying an Aluminum Heat Sink requires you to carefully balance thermal dissipation requirements, manufacturing feasibility, and overall unit cost. You cannot simply request generic materials. Relying on a vague "aluminum" specification is a significant engineering risk. This oversight frequently leads to unexpected structural failures. It can cause poor anodizing results. It often generates unnecessary machining complications that delay production timelines.
You need precise control over your material selection. This guide provides procurement teams and engineers with a clear, evidence-based framework. You will learn how to evaluate various material grades effectively. We will help you compare and shortlist the exact aluminum alloys suited for specific thermal management applications. By understanding the intricate relationship between alloy properties and manufacturing methods, you can optimize your thermal designs. You will secure reliable performance while avoiding costly production bottlenecks.
6000-Series Dominance: 6063 and 6061 are the industry standards for extruded profiles, offering the best balance of extrudability, thermal conductivity (approx. 160-200 W/m·K), and structural integrity.
Pure Aluminum Trade-offs: 1000-series alloys (like 1050 and 1070) provide maximum thermal conductivity (up to 230 W/m·K) but lack the tensile strength required for complex, load-bearing fin structures.
Process Dictates Material: The chosen manufacturing method (extrusion, die casting, skiving, or machining) heavily restricts your alloy options.
Surface Finish Impacts: The specific alloy grade determines the viability and quality of secondary surface treatments, particularly black anodizing for increased emissivity.
Selecting the optimal material begins by defining clear project success criteria. You must establish exactly what your thermal management system needs to achieve. Engineers must navigate several competing physical properties. They must also align these properties with specific production methods.
You will quickly encounter an inverse relationship between thermal conductivity and mechanical strength. Highly conductive alloys easily transfer heat away from critical components. However, they are typically quite soft. This softness causes significant issues during manufacturing. Extremely pure aluminum struggles to maintain tight extrusion tolerances. The delicate fins can bend under minor stress.
Stronger alloys resist physical deformation effectively. They hold complex shapes well. Unfortunately, the alloying elements that provide this strength also disrupt the aluminum crystal lattice. This disruption slightly impedes heat flow. We must find the optimal middle ground. Your device must survive mechanical shocks while keeping internal temperatures safe.
Your chosen design heavily influences your manufacturing method. This method strictly dictates your material options. You must evaluate your long-term production needs early in the design phase. Assess whether your project requires high-volume extrusion output. Extrusion pushes heated billets through steel dies to create long, continuous profiles.
Complex 3D geometries often require die-casting processes. Die-casting injects molten metal into custom molds under high pressure. This process allows for intricate mounting features. Conversely, some high-performance designs demand ultra-thin fins. Manufacturers achieve these thin geometries through skiving. Skiving literally peels thin slices of metal from a solid block. Each specific production method demands unique material behaviors. You cannot extrude casting alloys. You cannot easily die-cast pure forging alloys. Align your design intent with realistic production capabilities.
Industry standards rely on specific alloy families. Understanding these core categories helps you narrow down your choices rapidly. We have categorized the most common aluminum grades used in thermal management.
Alloy Grade | Primary Process | Thermal Conductivity (W/m·K) | Machinability | Structural Strength |
|---|---|---|---|---|
6063 | Extrusion | ~200 | Good | Moderate |
6061 | Machining / Extrusion | ~166 | Excellent | High |
1050 / 1070 | Forging / Skiving | 220 - 230 | Poor | Low |
ADC12 / A380 | Die-Casting | 90 - 100 | Good | High (Shape Dependent) |
Alloy 6063 represents the absolute baseline for thermal management. It offers exceptionally high extrudability. Manufacturers can push this material through complex dies effortlessly. It produces excellent surface finishes straight from the press. 6063 provides a robust thermal conductivity of approximately 200 W/m·K.
It remains the best choice for standard extruded fin designs. We commonly see this alloy in LED lighting housings. It dominates consumer electronics cooling systems. When you design a standard Aluminum Heat Sink, 6063 should be your first consideration. It offers unmatched versatility.
Alloy 6061 serves as the structural heavy-hitter. It possesses a significantly higher tensile strength than 6063. However, it sacrifices some thermal performance to achieve this strength. The thermal conductivity sits slightly lower at roughly 166 W/m·K. It boasts highly machinable properties.
This alloy excels in applications requiring extensive secondary CNC machining. If your design features intricate threaded holes, 6061 holds those threads perfectly. It handles structural mounting points securely. Use 6061 when your thermal device also serves as a primary load-bearing chassis component.
The 1000-series alloys consist of commercially pure aluminum. They deliver the absolute highest thermal conductivity available, reaching between 220 and 230 W/m·K. This purity comes with severe physical drawbacks. These materials are exceedingly soft. They exhibit remarkably poor machinability.
They remain the best option for specialized manufacturing techniques. Cold forged thermal devices rely heavily on 1050 or 1070. Skived fin configurations also utilize these pure grades effectively. Reserve these alloys for low-stress thermal applications where pure heat transfer speed outweighs all mechanical concerns.
Die-cast alloys like ADC12 and A380 contain significant amounts of silicon. This silicon provides excellent molten fluidity. The metal easily fills complex, intricate mold cavities under high pressure. Unfortunately, this silicon content heavily degrades thermal performance. The thermal conductivity drops dramatically to around 90-100 W/m·K.
These grades are best suited for high-volume enclosures. Use them when structural shape and integration outweigh pure thermal transfer rates. Many automotive and telecom housings utilize die-casting to consolidate multiple parts into one complex geometry.
Selecting the base alloy only solves half the problem. You must also evaluate how specific temper states and secondary treatments interact with your chosen material. These dimensions directly impact your final product quality.
Artificial aging alters the mechanical and thermal properties of 6000-series alloys. The temper designation indicates this specific heat treatment process. A T5 temper involves cooling the profile directly from the extrusion press. The manufacturer then artificially ages it in an oven. This process yields good strength and maintains excellent thermal conductivity.
A T6 temper requires a more aggressive approach. The manufacturer solution heat-treats the metal, quenches it rapidly, and then artificially ages it. T6 delivers significantly higher mechanical strength. However, this aggressive structural alignment slightly reduces the overall thermal conductivity. You must weigh strength gains against thermal losses.
Machinability profoundly impacts production timelines and expenses. Evaluating how different alloys react to cutting tools prevents severe manufacturing headaches. Softer alloys, such as 1050 pure aluminum, pose unique challenges. They do not chip cleanly during CNC machining.
Instead, these soft materials often cause "galling." The soft aluminum literally smears and welds itself to the cutting tool. This ruins the surface finish immediately. It drastically increases cycle times. Machine operators must stop frequently to clean or replace clogged end mills. Harder alloys like 6061 produce clean, crisp chips. They machine rapidly and reliably.
Surface treatments often dictate final thermal performance. Specific alloys react very differently to electrochemical anodizing processes. Alloy 6063 yields visually superior, highly consistent dark anodized finishes. A deep black anodized layer is critical for maximizing radiative heat transfer in passive cooling setups.
Conversely, die-cast alloys struggle with anodizing. The high silicon content required for casting fluidity resists the anodizing process. These castings often result in patchy, uneven, grey finishes. If high-emissivity black coatings are mandatory, you should generally avoid high-silicon die-cast materials.
Even experienced engineering teams encounter setbacks during material specification. Recognizing common pitfalls helps you avoid systemic failures. Do not let minor oversights ruin an otherwise excellent design.
Over-Specifying Material: Many teams mandate aerospace-grade aluminum or pure copper unnecessarily. A standard Aluminum Heat Sink utilizing 6063 with optimized fin geometry usually meets thermal targets perfectly. Over-specifying simply wastes budget without delivering tangible real-world benefits.
Ignoring Fin Aspect Ratios: Extrusion processes have physical limits. Designing fins too thin or too tall exceeds the selected alloy’s extrudability limits. This aggressive geometry results in expensive die breakage. The profile may also warp severely during the cooling phase. Always respect standard extrusion aspect ratios.
Miscalculating Thermal Resistance: Systemic thermal bottlenecks rarely originate from the aluminum grade alone. Failing to account for the thermal interface material (TIM) is a critical error. Inadequate mounting pressure also ruins thermal transfer. Engineers often falsely blame the aluminum grade for poor performance when the actual issue lies at the contact interface.
Consult extrusion guidelines early. Maintain a standard 10:1 to 12:1 fin aspect ratio for 6063 alloys. Ensure you apply proper torque specifications to all mounting hardware. Always utilize high-quality thermal pastes or pads. Test your entire assembly holistically before requesting exotic alloy upgrades.
Transitioning from theoretical material selection to actual procurement requires a structured approach. Use logical frameworks to narrow down your final material choice efficiently.
Apply this straightforward decision matrix to categorize your immediate project needs:
For standard profiles and high volume: Default immediately to 6063-T5. It offers the best balance of cost, performance, and availability.
For heavy machining or structural needs: Shortlist 6061-T6. It provides the necessary strength for threads and tight tolerance milling.
For extreme fin density: Evaluate 1060 or 1050 alloys. You must pair these with skiving or cold forging processes to achieve those ultra-thin geometries safely.
Your manufacturing partner plays a crucial role in your success. You must ask them specific technical questions. Inquire regarding their extrusion press capacity. Ask about their available tonnage. High-tonnage presses handle wider, more complex profiles effectively.
Evaluate their die design expertise. Good die design minimizes material flow imbalances. Inquire about their in-house thermal testing capabilities. A partner equipped with wind tunnels and thermal imaging provides invaluable validation data during pilot runs.
Never rush straight into mass production tooling. Transition carefully from thermal simulation directly to physical prototyping. Use Computational Fluid Dynamics (CFD) to narrow down your fin geometry. Once simulated, invest in rapid CNC prototyping.
Machine a few initial samples from standard billet blocks. Test these prototypes in your actual operating environment. Validate the thermal performance thoroughly. Only after successful validation should you invest capital in custom extrusion dies.
The "best" aluminum grade does not exist in isolation. It depends entirely on the precise intersection of your thermal targets, structural requirements, and selected manufacturing processes. You must balance heat transfer needs against physical durability and production realities.
Remember that optimizing fin geometry generally yields better results than simply upgrading to a higher-cost alloy. Improving system airflow provides massive thermal improvements. A smartly designed 6063 profile easily outperforms poorly designed copper alternatives.
Take action today. Encourage your engineering teams to consult with manufacturing partners early in the design phase. Review CAD files specifically for extrudability limits and alloy selection. Proactive collaboration ensures you achieve optimal thermal performance without compromising your production timeline.
A: Alloy 6063 offers superior thermal conductivity and excellent extrudability, making it ideal for complex profiles. Conversely, 6061 provides enhanced structural strength and better machinability. Engineers typically choose 6061 when the design requires extensive secondary CNC machining or load-bearing mounting points.
A: While 1000-series pure aluminum delivers maximum thermal conductivity, it severely lacks mechanical strength. It is too soft for complex extrusion shapes. Furthermore, its softness causes poor machinability, leading to severe tool galling. This makes it highly unsuitable for standard extruded or heavily machined profiles.
A: Yes, black anodizing significantly improves radiative heat transfer. This surface treatment is highly beneficial in natural convection environments where radiation plays a large cooling role. However, anodizing has minimal thermal impact in high-velocity forced convection setups, where convective air cooling dominates the heat transfer process.
A: No. Die-cast aluminum requires a high silicon content to ensure adequate molten fluidity during casting. This added silicon significantly disrupts heat flow, reducing overall thermal conductivity. While die-casting enables incredibly complex 3D geometries, the raw thermal transfer rate remains notably lower than extruded 6000-series alloys.
