Many people assume thermal management components utilize pure metal straight from the earth. They picture raw, unalloyed material channeling heat away from critical processors. However, pure aluminum is simply too soft. It cannot survive complex manufacturing processes or rigorous industrial applications. Commercial heat sinks demand highly specific aluminum alloys. Engineers meticulously select these blends to balance thermal conductivity, structural integrity, and overall manufacturability.
This guide helps engineers, product designers, and procurement managers evaluate viable options. We explore the hard trade-offs between thermal performance, tooling constraints, and production volume. Selecting the wrong material often leads to failed prototypes and wasted budgets. By understanding the underlying metallurgy, your team can avoid costly production delays. You will discover exactly how to specify the correct aluminum alloy for your next thermal management project.
Alloy dictates performance: Most commercial aluminum heat sinks are made from 6000-series alloys, not pure aluminum, balancing a thermal conductivity of ~160–210 W/m·K with high machinability.
6063 is the standard: Aluminum 6063 is the dominant choice for extruded heat sinks due to its excellent surface finish and fin-to-base ratio capabilities.
Manufacturing dictates material: Your required production method (extrusion, die casting, skiving, or CNC machining) will automatically restrict your viable alloy options.
Anodizing adds value: The base alloy significantly impacts how well the heat sink can be anodized, which is critical for both corrosion resistance and thermal emissivity.
Engineers often begin a thermal design by looking at pure aluminum. The thermal specifications look fantastic on paper. Pure 1050 or 1060 aluminum boasts exceptional thermal conductivity. It can reach up to 230 W/m·K. This sounds perfect for drawing heat away from delicate electronic components. However, this theoretical perfection shatters during real-world manufacturing.
The primary issue lies in the thermal versus structural trade-off. Pure aluminum lacks sufficient yield strength. It cannot support thin, densely packed fin structures. If you manufacture a highly dense fin array from pure aluminum, the fins easily bend. They might even snap under minimal physical stress. Real-world applications involve vibrations, handling, and shipping. Pure aluminum simply lacks the rigidity required to survive these mechanical loads.
Furthermore, pure aluminum presents massive machinability roadblocks. When you place pure aluminum into a CNC machine, it behaves poorly. The metal is notoriously "gummy." It tends to melt and stick to the cutting tools. Machinists call this a built-up edge (BUE). This gumminess increases tool wear dramatically. It slows down production cycles and frequently ruins the surface finish. A poor surface finish looks bad and reduces the effectiveness of subsequent anodizing steps.
Metallurgists developed a practical alloy solution to fix these issues. They introduce elements like silicon, magnesium, and copper into the pure aluminum matrix. These additives lock the crystal lattice of the metal. This locking mechanism provides massive improvements in structural rigidity and overall manufacturability. You do sacrifice a marginal percentage of thermal efficiency. However, gaining a robust, manufacturable component makes this trade-off absolutely necessary.
Best Practices for Material Selection:
Always prioritize structural integrity if the component faces high vibration.
Do not specify 1000-series aluminum for CNC-machined parts.
Accept slight thermal conductivity drops in exchange for reliable production runs.

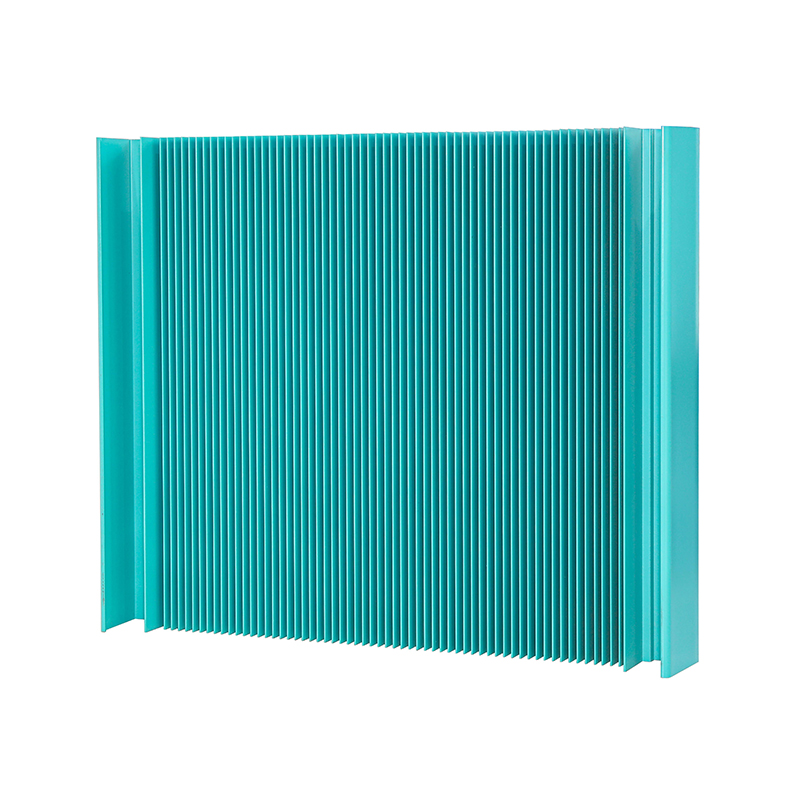

If you are buying or specifying a standard commercial Aluminum Heat Sink, chances are high you will use the 6000 series. Magnesium and silicon serve as the primary alloying elements here. This family of alloys dominates the thermal management industry. It offers the best possible compromise between heat dissipation and mechanical strength.
Aluminum 6063 stands as the undisputed standard for extruded heat sinks. Its thermal conductivity hovers around 200 W/m·K. This value easily satisfies the cooling requirements for most commercial electronics.
Why does 6063 win so consistently? The secret lies in its material flow. When heated, 6063 flows exceptionally smoothly through steel extrusion dies. This smooth flow allows manufacturers to design complex geometries. You can achieve very tight fin spacing and impressive fin-to-base ratios. Additionally, 6063 accepts surface treatments beautifully. It produces a flawless black anodized finish. This black finish is crucial because it significantly boosts the component's radiant heat dissipation.
Aluminum 6061 serves a slightly different purpose. Its thermal conductivity is lower, sitting at roughly 167 W/m·K. Despite this drop, engineers frequently choose 6061 for high-stress environments. It is also the go-to material for CNC-machined prototypes.
This alloy wins when mechanical load-bearing is critical. It possesses a much higher tensile strength than 6063. If your cooling unit must also support the weight of heavy circuit boards, 6061 is ideal. It machines very precisely without gumming up the cutters. However, 6061 is much harder to extrude into complex, intricate fin profiles. Extrusion dies wear out much faster when pushing 6061 compared to 6063.
Table 1: Thermal and Structural Comparison of Common Aluminum Alloys
Alloy Grade | Thermal Conductivity (W/m·K) | Primary Manufacturing Method | Key Advantage |
|---|---|---|---|
1050 (Pure) | ~230 | Cold Forging | Maximum heat transfer |
6063 | ~200 | Extrusion | Best balance of flow and thermal performance |
6061 | ~167 | CNC Machining | Superior structural strength |
ADC12 | ~96 | Die Casting | Excellent for complex 3D shapes |
Sometimes, the 6000 series simply cannot meet the demands of a project. Edge-case scenarios often require extreme thermal limits or highly specific manufacturing constraints. In these situations, engineers must look toward specialty alloys.
We classify the 1000 series as commercially pure aluminum. Manufacturers use 1050 and 1060 almost exclusively for cold-forged or stamped heat sinks. In these specific manufacturing methods, the material does not need to flow through tight extrusion dies. The fin density does not restrict the metal flow as severely. Therefore, you can leverage the highest possible thermal conductivity. The major downside remains its exceptionally low structural strength. You must handle these components carefully during assembly.
Die-casting alloys serve entirely different applications. Engineers specify ADC12 or A380 when the heat sink must be integrated directly into a complex 3D housing. LED light fixtures provide a perfect example. The housing itself acts as the primary cooling structure. Die casting allows you to create these intricate, multi-functional shapes in high volumes rapidly.
There is a significant catch, however. Die-casting alloys require a very high silicon content. High silicon allows the molten metal to flow effortlessly into complex mold cavities. Unfortunately, silicon acts as a severe thermal insulator. This high silicon content drops the overall thermal conductivity drastically. Performance often falls to 90–100 W/m·K.
Common Mistakes in Die Casting:
Assuming an ADC12 housing will cool identically to a 6063 extrusion.
Failing to increase the surface area to compensate for the lower thermal conductivity.
Ignoring mold porosity, which traps air and further reduces thermal efficiency.
You cannot evaluate your material without simultaneously evaluating your production line. A mismatch here leads to immediate project failure. It can also cause severe budget overruns. The physical realities of shaping metal dictate exactly which alloys remain viable.
1. Extrusion
Extrusion requires 6063 or 6060 aluminum. These alloys maintain the necessary plasticity at elevated temperatures. Extrusion offers low to medium tooling costs. It also provides excellent scalability for linear profile designs. If you try to extrude pure aluminum, it lacks the tension to hold intricate fin shapes as it exits the die.
2. Skiving (Skived Fins)
Skiving is a fascinating mechanical process. A sharp blade shaves a block of metal and bends the shaving upright to form a fin. This method requires 1060 or 6061 aluminum. Skiving allows for incredibly dense fin pitches. Extrusion simply cannot achieve these extreme densities. The process requires a highly ductile material. The metal must peel away from the base without snapping or tearing. If the alloy is too brittle, the fins break immediately.
3. Cold Forging
Cold forging relies on raw, brute force. Massive presses smash the aluminum into a die cavity at room temperature. This method requires the highly malleable 1000-series pure aluminum. Cold forging commands a high upfront tooling cost. The steel molds must withstand immense pressures. However, it yields exceptional thermal properties. The final part features dense material grain and absolutely no internal air bubbles.
Decision Matrix Chart: Matching Process to Volume
Production Volume | Design Complexity | Recommended Process | Recommended Alloy |
|---|---|---|---|
Low (1-100) | High / Custom | CNC Machining | 6061 |
Medium (100-5000) | Linear Profile | Extrusion | 6063 |
High (5000+) | Dense Fin Array | Cold Forging | 1050 |
Mass (10,000+) | Complex 3D Housing | Die Casting | ADC12 |
Building a shortlist requires a logical approach. You must make a defensible procurement decision based on hard engineering facts. Follow this step-by-step evaluation framework to ensure success.
Establish the Thermal Budget: Start by calculating the required thermal resistance (°C/W). You need to know exactly how much heat your component generates. Determine the maximum allowable junction temperature. If your thermal requirement is extreme, standard alloys might fail. You may need to specify 1050 forged aluminum. Alternatively, you might have to transition entirely to copper. If you choose copper, you must acknowledge a massive three-times weight penalty.
Assess Volume and Tooling Tolerances: Production scale changes everything. High-volume, complex shapes strongly favor ADC12 die casting. You accept the sacrificed thermal efficiency to gain massive production speed. Conversely, medium-volume, linear profiles strictly favor 6063 extrusion. Extrusion tooling is remarkably cheap compared to die-casting molds.
Evaluate Environmental Compliance: Think about where the final product will operate. Ensure the specified alloy meets end-use regulatory standards. You must also verify subsequent surface treatments. Look for RoHS-compliant clear or black anodizing. Harsh outdoor environments require thicker anodic coatings. This prevents oxidation and ensures the thermal performance remains stable over decades.
Experienced engineers never pick materials in isolation. They map the thermal budget directly against the manufacturing realities. They consult closely with trusted vendors early in the design phase.
Alloy selection is never a simple, single-variable equation. It represents a triangulated decision. You must carefully balance your target thermal resistance against strict mechanical constraints and manufacturing scalability. Pure aluminum delivers unmatched heat transfer but fails structurally. Die-cast alloys create brilliant shapes but insulate against heat flow. The 6000 series usually provides the perfect middle ground for everyday applications.
Before you lock in your final CAD design, take proactive steps. Consult directly with an experienced manufacturing partner. Ask them to run thorough thermal simulations using Computational Fluid Dynamics (CFD). These digital tests verify if your chosen fin profile cools effectively. More importantly, your manufacturer will confirm if your design is actually extrudable or machinable in your selected alloy. Getting this right early prevents massive headaches on the factory floor.
A: Yes. Bare aluminum possesses a very low thermal emissivity, generally around 0.05. Applying a black anodized finish increases this surface emissivity to nearly 0.85. This drastic increase significantly improves heat dissipation via radiation, especially in environments relying on natural convection cooling.
A: Copper offers roughly double the thermal conductivity of aluminum, reaching nearly 400 W/m·K. However, copper is three times heavier and significantly more expensive. It is also much harder to machine or extrude. Aluminum remains the industry standard for high-volume production where weight and cost constraints exist.
A: Yes. Extruded aluminum cooling components are highly recyclable. Scrap yards typically classify clean 6063 extrusions as premium grade materials. To achieve this high grading, you must ensure the scrap is entirely free of thermal paste, embedded steel screws, and press-fit copper inserts.
