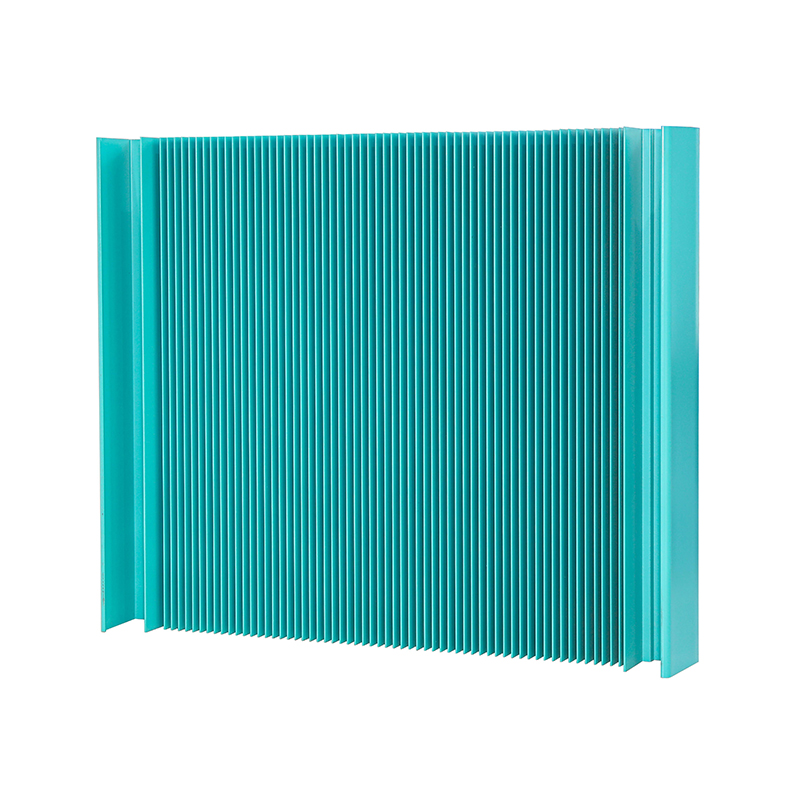

Scaling up an Aluminum Heat Sink design introduces massive friction between thermal conductivity requirements and physical manufacturing realities. You cannot simply take a small fin profile and scale it up exponentially. Large-format extrusions bump against hard limits. They face severe extrudability constraints, rigid press tonnage limits, and structural integrity boundaries. Specifying the wrong alloy for a massive extrusion causes major engineering headaches. It leads directly to die breakage, unacceptable factory scrap rates, and compromised mechanical strength. High-power thermal management systems require precise, calculated material selection to function correctly. This guide provides a definitive, evidence-based breakdown of standard alloys used for large extrusions today. We will explore their specific thermal-mechanical trade-offs in depth. You will learn exactly how to specify the right material for your demanding applications. We aim to help you balance theoretical thermal resistance against the very real physical constraints of modern manufacturing.
6063 is the industry standard: Offers the optimal balance of thermal conductivity (~200 W/m·K) and excellent extrudability for complex, high-aspect-ratio fin profiles.
6061 provides structural strength but costs thermal performance: Better for load-bearing heat sinks, but thermal conductivity drops to ~167 W/m·K, and complex fin geometries are harder to extrude.
10-Series (Pure Aluminum) is theoretically superior but practically limited: While boasting high thermal conductivity (~220+ W/m·K), it is typically too soft for large, complex extrusions without high defect rates.
Temper matters as much as the alloy: T5 and T6 heat treatments dictate the final yield strength and machinability of the heat sink.
Large-scale thermal management presents unique business and engineering problems. The success criteria shift dramatically compared to smaller electronic components.
Large heat sinks demand exceptionally wide extrusion dies. They require massive, high-tonnage presses to push the heated aluminum billet through the steel profile. Harder aluminum alloys drastically increase friction inside the die cavity. This intense friction slows down the entire production line. It heavily limits the density of the fins you can successfully extrude. If you push a tough alloy too fast, the delicate die tongues will snap. This immediately halts production and destroys expensive tooling.
Thermal engineers naturally obsess over surface area. They want tall fins packed closely together to maximize cooling. We define this physical geometry using the fin height-to-gap aspect ratio. Manufacturers typically limit this critical ratio between 10:1 and 40:1. The exact limit depends entirely on the press capabilities and the material softness. Softer alloys flow easier under pressure. They readily permit higher aspect ratios in large profiles. Harder alloys resist flow and force you to accept lower aspect ratios, decreasing your cooling potential.
Over-specifying an alloy for fractional thermal gains represents a very common engineering mistake. Choosing an exotic or pure alloy might yield a minor drop in thermal resistance. However, it often results in disproportionate upfront tooling costs. Extrusion line speeds plummet. Delivery lead times stretch from a few weeks into several months. You must continuously weigh theoretical thermal efficiency against the hard reality of factory floor economics.
When evaluating baseline materials, 6063 aluminum sits clearly at the top. This versatile alloy serves as the default solution for most thermal engineers globally.
The thermal conductivity of 6063 ranges roughly from 200 to 209 W/m·K. This impressive rating easily satisfies over 85% of commercial and industrial thermal requirements today. It efficiently moves destructive heat away from high-power microprocessors, LED arrays, and massive power inverters. You rarely need anything more conductive for standard natural or forced convection cooling.
The true brilliance of 6063 lies in its phenomenal extrudability. This material flows beautifully through complex, intricate steel dies. It easily fills the deep cavities required for exceptionally tall cooling fins. You can achieve surprisingly thin fins and much tighter pitches. This smooth flow characteristic allows for much wider overall footprints in massive Aluminum Heat Sink designs. High extrudability directly translates to lower factory scrap rates and noticeably cheaper production costs.
The post-extrusion heat treatment, known as temper, radically changes the physical properties of the metal.
6063-T5: This temper involves air-cooling the extrusion directly as it exits the press. Technicians then artificially age it in a specialized oven. T5 represents the absolute standard for most large heat sinks. It maintains excellent thermal flow and provides sufficient structural strength for standard hardware mounting.
6063-T6: Manufacturers water-quench the hot extrusion to lock its grain structure rapidly. They then artificially age it. T6 delivers significantly higher tensile strength. You specify T6 primarily when the heat sink must double as a rigid structural mounting bracket. However, you must accept that this rapid quenching slightly lowers the overall thermal conductivity.
Some operational environments violently punish sensitive electronics. You frequently need cooling solutions built specifically for high-stress, abusive environments.
Engineers specify 6061 when the thermal solution must independently bear heavy mechanical loads. Think of aerospace chassis, railway enclosures, and heavy industrial drive cabinets. These large heat sinks must survive constant vibration, high torque, and sudden impact. The superior tensile strength of 6061 handles these structural demands perfectly.
Physical strength comes at a severe thermal cost. The thermal conductivity of 6061 drops heavily to roughly 167 W/m·K. This represents a significant decrease compared to the 6063 baseline. You must acknowledge this performance penalty immediately. Your early thermal simulations must account for this increased thermal resistance to prevent final product overheating.
6061 strongly resists flow under pressure. It simply refuses to move smoothly through tight die spaces. Extruding it requires massively higher press tonnage. The metal fights the steel die at every single millimeter.
Thicker Minimum Fins: You cannot extrude paper-thin fins with 6061. The high pressure will break the die. You must design much thicker fins to withstand the extrusion forces.
Lower Aspect Ratios: The maximum height-to-gap ratio drops significantly. You irreversibly lose critical surface area.
Common Mistake: Never copy a high-density 6063 design and simply swap the material specification to 6061 on the drawing. The manufacturer will reject the CAD model immediately due to tooling failure risks.
High-performance applications sometimes tempt engineers to look entirely past the reliable 6000-series alloys.
The 10-series represents the purest commercial aluminum grades available today. Alloys like 1050 and 1060 offer staggering thermal conductivity metrics. They easily reach between 220 and 230 W/m·K. From a purely theoretical standpoint, they look like the ultimate thermal management material.
Theory often fails miserably on the factory floor. Pure aluminum acts extremely soft and gummy during processing. This creates severe, costly manufacturing risks.
Fin Deformation: The delicate fins bend and deform simply from workers handling the part during transit.
Cutting Issues: Sawing pure aluminum creates long, sticky chips. The metal smears violently instead of cutting cleanly, ruining saw blades.
Die Wear: The gummy material clogs and wears down intricate die features rapidly.
Profile Limits: You face severe dimensional limitations when attempting wide, complex extrusion profiles.
We rarely recommend the 10-series for large extruded Aluminum Heat Sink builds. The massive defect rates destroy any cost viability. These pure alloys suit completely different manufacturing processes. They work beautifully for cold-forged pins or skived fin heat sinks. In those specific processes, hot material flow through an extrusion die is simply not a factor.
Selecting the optimal material requires a highly logical shortlisting process. You must systematically evaluate several key engineering dimensions.
This dynamic remains the fundamental compromise in thermal design. If you need maximum surface area to cool a blisteringly hot processor, use 6063. It eagerly accommodates the thin fins you need. If the cooling component must survive heavy mechanical loads or impacts, switch to 6061. You must accept thicker fins and lower surface area to gain that necessary strength.
Custom tooling costs scale linearly with design complexity. Specifying non-standard or hard alloys for a very wide profile guarantees higher upfront die costs. Harder alloys dramatically increase the risk of catastrophic die failure during initial push trials. This extends your project lead times by weeks as the factory frantically rebuilds the broken steel die.
Most large extrusions require extensive secondary CNC machining. You have to drill deep holes and tap precise threads for mounting hardware. Different aluminum alloys respond uniquely to spinning cutting tools.
6061-T6 machines brilliantly. It predictably produces clean, crisp chips that evacuate easily.
6063-T5 machines reasonably well provided you use sharp tools and proper coolant flooding.
Pure aluminum (10-series) tends to gall aggressively. It tears and permanently sticks to the endmill, causing rough, unacceptable surface finishes.
Aesthetics and corrosion resistance matter deeply in final assemblies. Bare aluminum oxidizes inconsistently when exposed to air over time. Anodizing forces a controlled, thick oxide layer onto the metal surface. This protective layer acts as a fantastic electrical insulator while fiercely resisting harsh environmental corrosion. More importantly, 6063 provides the most consistent, aesthetically pleasing anodized finish available. It hides raw extrusion lines perfectly. Dyeing the anodic layer black significantly boosts the radiant emissivity of the surface. In challenging environments where forced airflow is completely unavailable, this radiant cooling capability becomes crucial.
Below is a basic comparison chart summarizing these daily engineering trade-offs.
Alloy Grade | Thermal Conductivity (W/m·K) | Extrudability (Fin Density) | Machinability | Best Use Case |
|---|---|---|---|---|
6063-T5 | ~200 - 209 | Excellent (High aspect ratios) | Good | Standard high-performance thermal management. |
6061-T6 | ~167 | Poor (Requires thick fins) | Excellent | Structural and load-bearing chassis components. |
1050/1060 | ~220 - 230 | Very Poor (Soft and gummy) | Poor | Cold-forged or skived profiles only. |
Even with the perfect alloy chosen, massive designs face hard physical realities on the production line. You must aggressively mitigate these known risks early.
Extrusion presses force hot billets through a circular steel opening. Manufacturers universally call this the press circle size. Common industrial presses measure 10, 12, or 14 inches. A massive 16-inch press is exceedingly rare and expensive to run. The absolute maximum width of your large extruded Aluminum Heat Sink is strictly dictated by this circle size. You physically cannot extrude a 20-inch wide profile on a 14-inch press.
What happens when your critical design exceeds standard press limits? Manufacturers deploy advanced joining techniques. They extrude two or three smaller 6063 profiles separately. They place them side by side on a specialized machine. They then use Friction Stir Welding (FSW) to bond them permanently. FSW uses a rapidly rotating tool to generate intense frictional heat. The material softens heavily but never reaches its melting point. The tool physically stirs the two separate profiles together. This creates a flawless solid-state joint. The resulting weld joint conducts heat brilliantly, effectively circumventing press size limits.
Large metal extrusions warp naturally. As the hot metal cools unevenly on the run-out table, it tends to bow and twist. Controlling this tolerance creep is vital for product success. Standardizing on 6063-T5 helps manufacturers hold significantly tighter flatness tolerances across wide spans. Flatness matters immensely. The base of the heat sink must mate perfectly with the hot processor. If the base bows upward, the thermal interface material cannot bridge the physical gap. The expensive component will quickly overheat and fail catastrophically.
We can confidently state that 6063-T5 represents the overwhelming favorite for large aluminum extruded heat sinks. It consistently provides an unbeatable convergence of easy extrudability, high thermal conductivity, and reasonable production cost. You gain the massive surface area required for high-power electronics without breaking the bank on ruined tooling or rejected batches.
Engineering teams must adopt a collaborative approach to thermal management. Consult with your trusted extrusion partner early in the conceptual design phase. You deeply need to align your desired fin aspect ratios with their specific press tonnages. Do not wait until you finalize the CAD model to ask about manufacturability.
Are you currently pushing the strict limits of natural or forced convection? Prompt your procurement and engineering buyers to submit their complete thermal requirements or 3D CAD models today. Request a comprehensive manufacturability review. Securing the exact right material recommendation early guarantees a highly successful, stress-free product rollout.
A: The difference comes down to cooling and artificial aging methods. 6063-T5 is air-cooled directly from the press, yielding better thermal conductivity (~200 W/m·K) and sufficient baseline strength. 6063-T6 is rapidly water-quenched, which increases structural tensile strength but slightly drops overall thermal conductivity. T5 remains the optimal choice unless structural mounting is heavily required.
A: Yes, but rarely through a single standard extrusion die. Most commercial extrusion presses have strict circle size limits around 10 to 14 inches. For massive widths exceeding 18 inches, manufacturers extrude two smaller profiles. They then seamlessly join them using Friction Stir Welding (FSW) to create one contiguous base.
A: Copper boasts nearly double the thermal conductivity of standard aluminum, but it brings massive drawbacks. It is heavily cost-prohibitive and drastically increases the final weight of the assembly. Furthermore, copper is notoriously difficult to extrude into complex fin profiles. Aluminum simply provides a far superior balance of extrudability and cost.
A: Yes, it absolutely does. Black anodizing significantly improves the surface emissivity of the base metal. In natural convection environments without fans, radiant heat dissipation plays a major role. A properly black-anodized surface radiates stored heat far more effectively than bare aluminum, heavily lowering thermal resistance.
